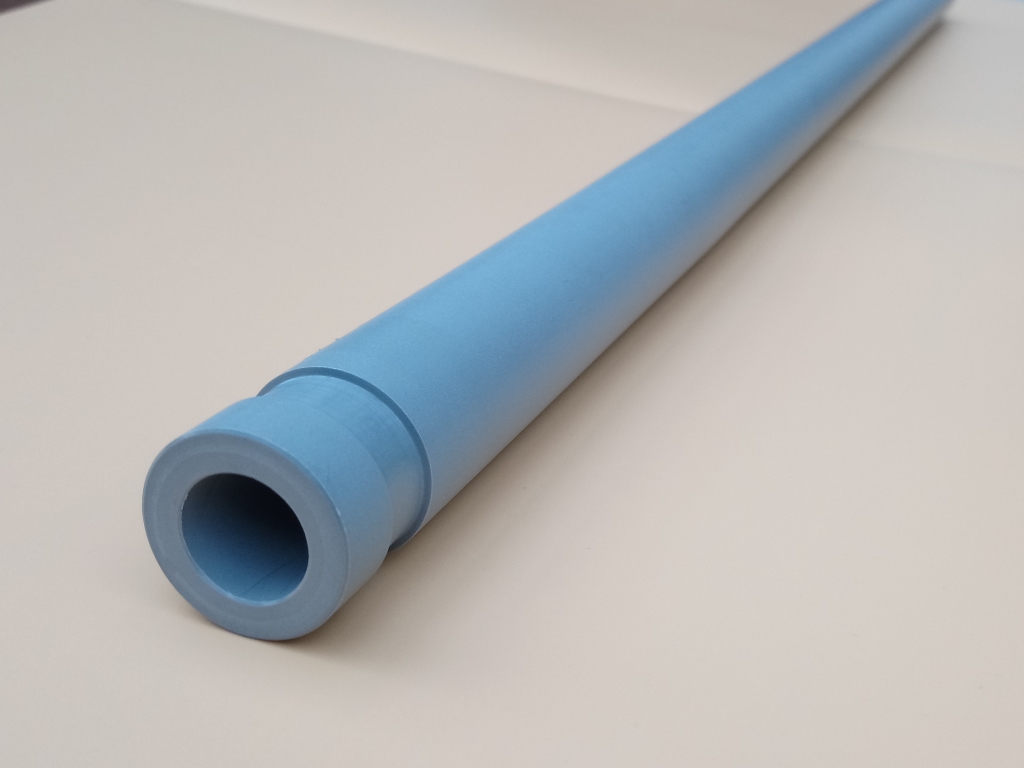

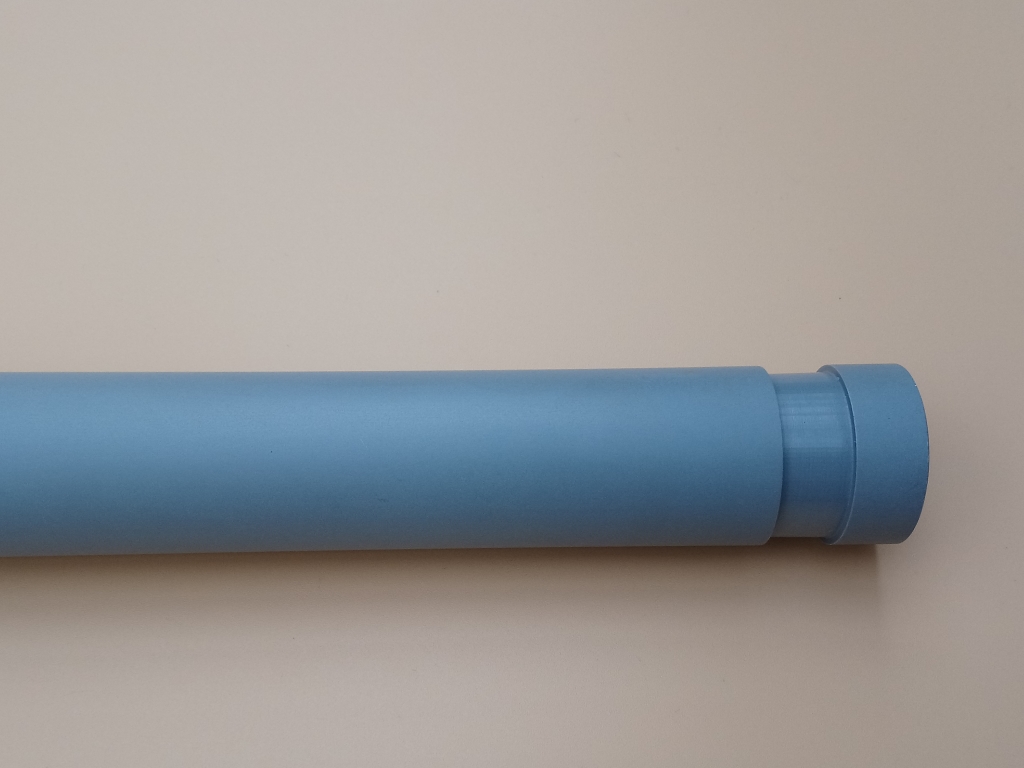

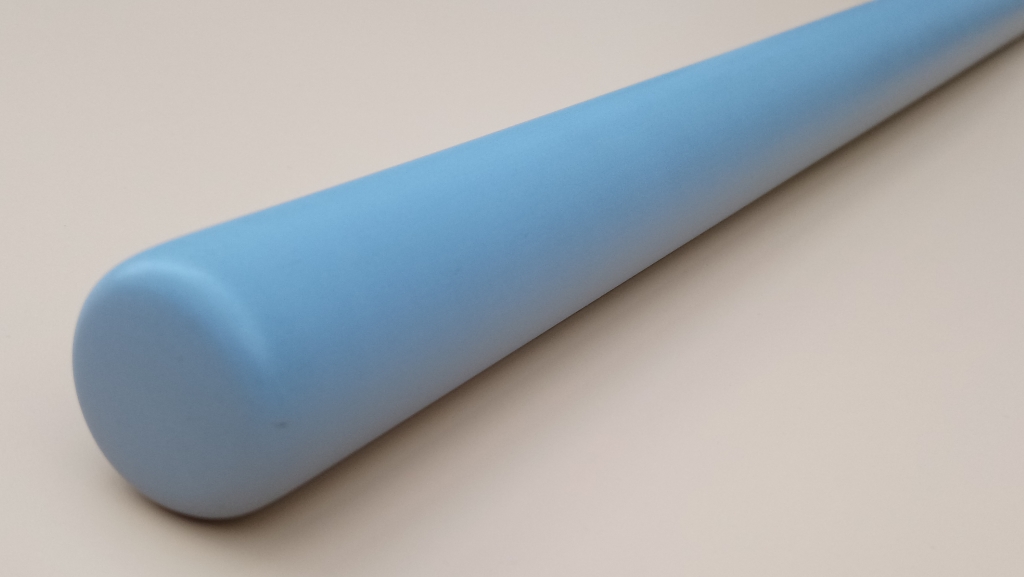

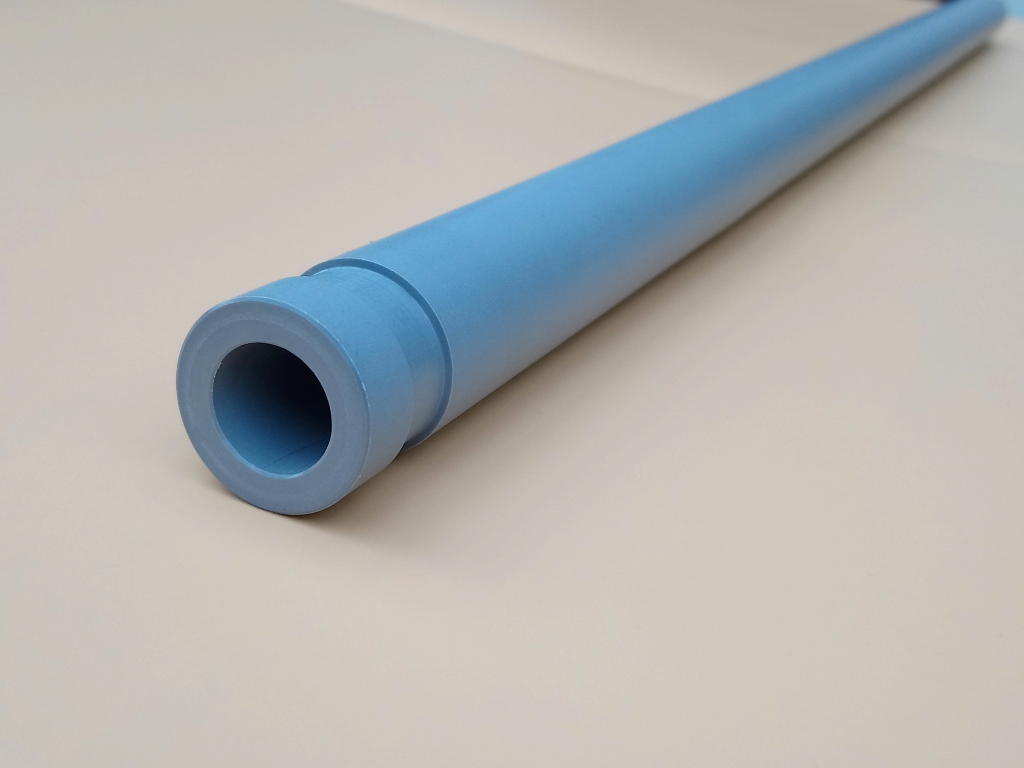

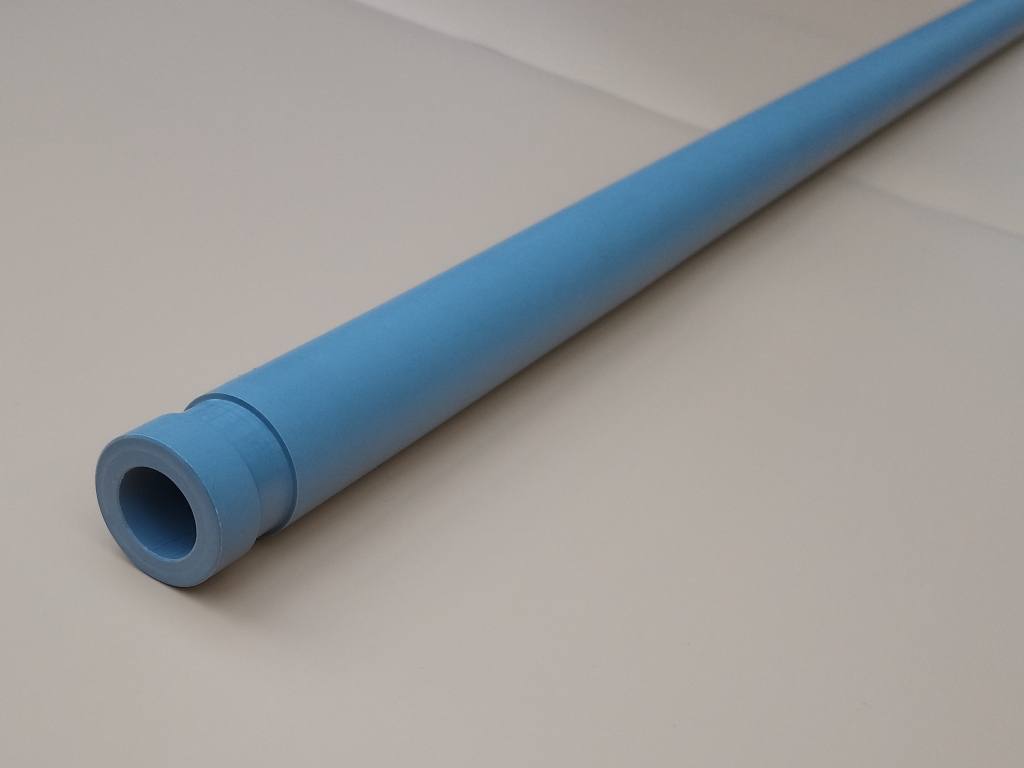

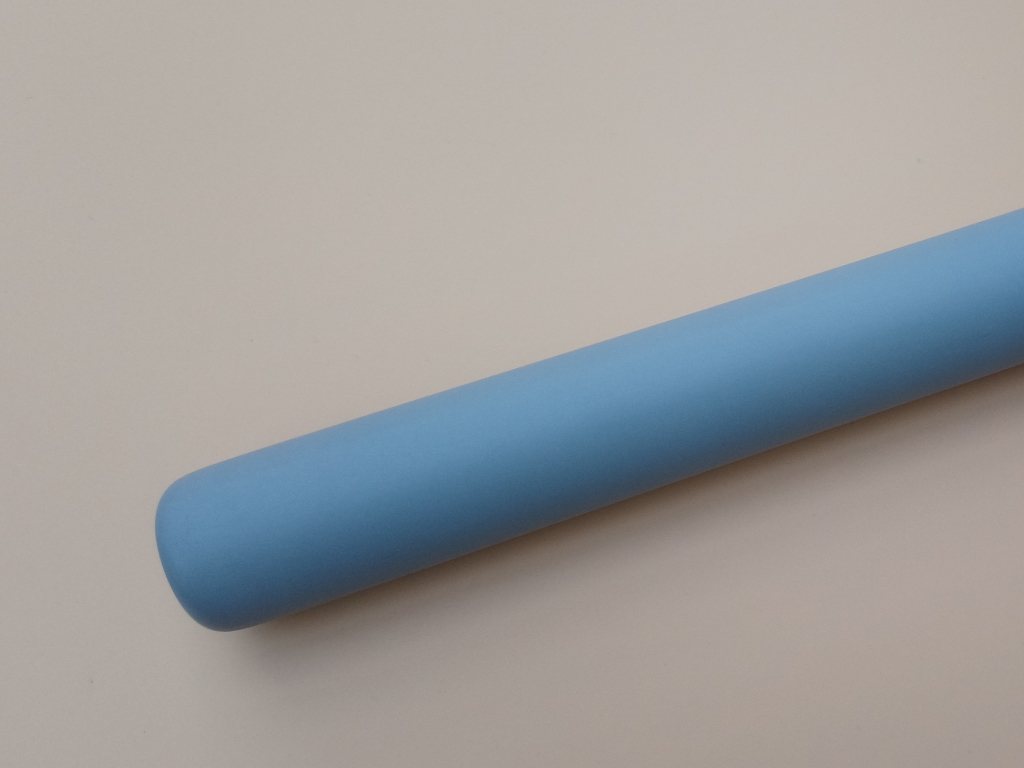

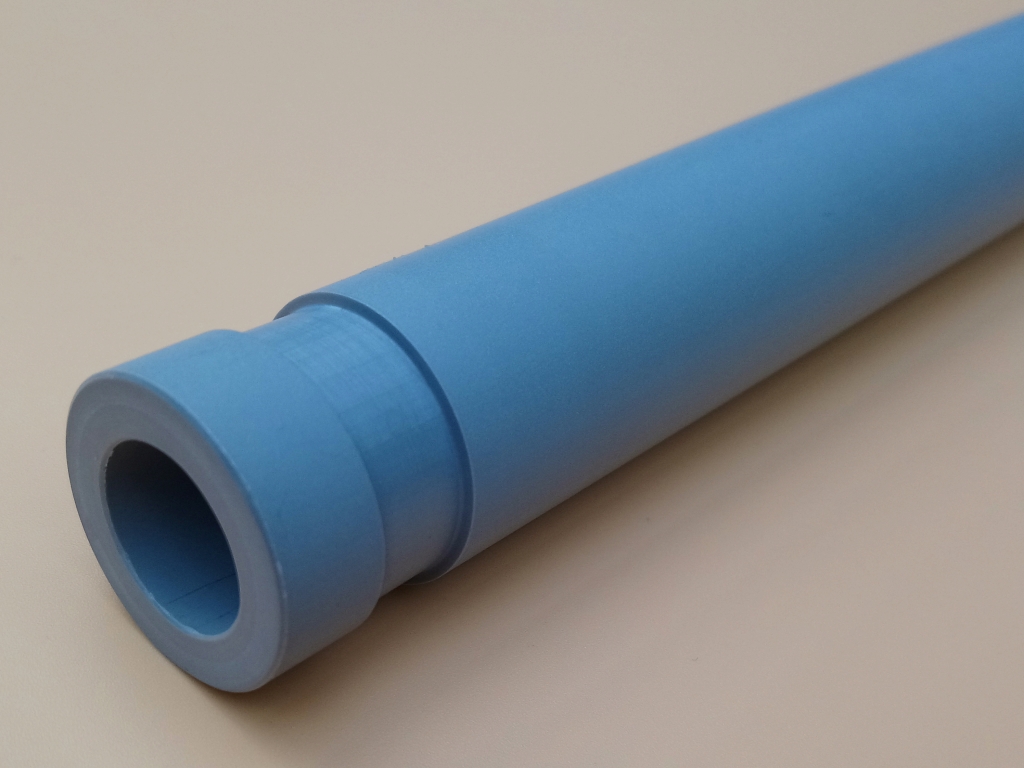

SiN Thermocouple Protection Tube,
is made by advanced technology and German equipment,
with best imported raw material.
it is excellent to be used for aluminum and other non-ferrous metals melting .
* Best thermal conductivity
* Excellent shock resistance
* Light weight
* Long life
Most useful size in mm : OD 28 x ID 16 x L : from 200 to 1200
Other size is open on enquiry .
Technical data :
Bulk density : 3.2 g/cm3
Water absorption : 0 %
Bending strength : 750 Mpa
Young modulus : 280 Gpa
Fracture toughness : 6.5 Mpa . m1/2
Poisson's ratio : 0.28
Vickers hardness : 15 Gpa
Coefficient of linear expansion : 3.4 x 10- 6 / °C
Thermal conductivity : 26 W/ (m . k )
Specific heat : 0.65 J (g. k )
Volume resistivity : >10 14 Ω * cm
Heat shock resistance : 800 °C
Max operation temperature 1150 °C
